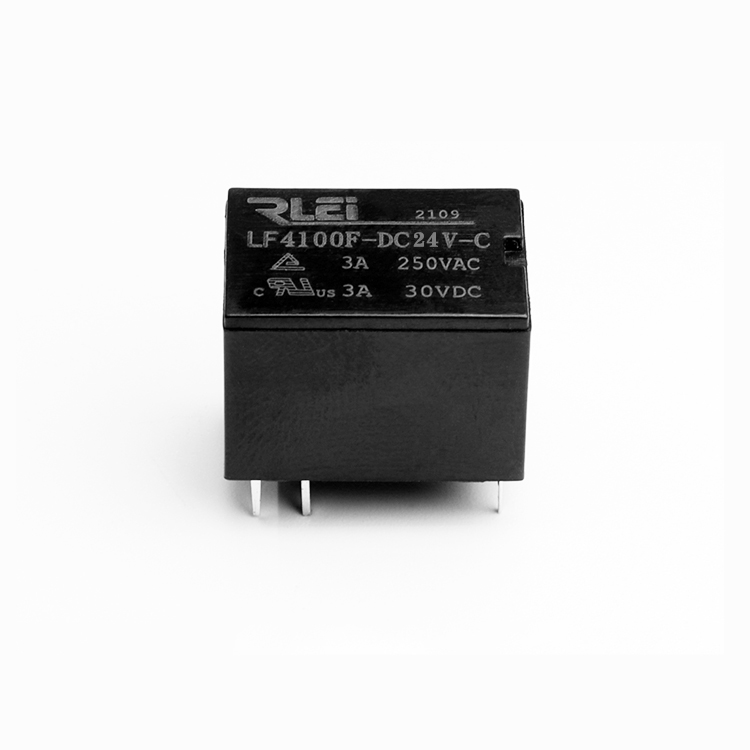

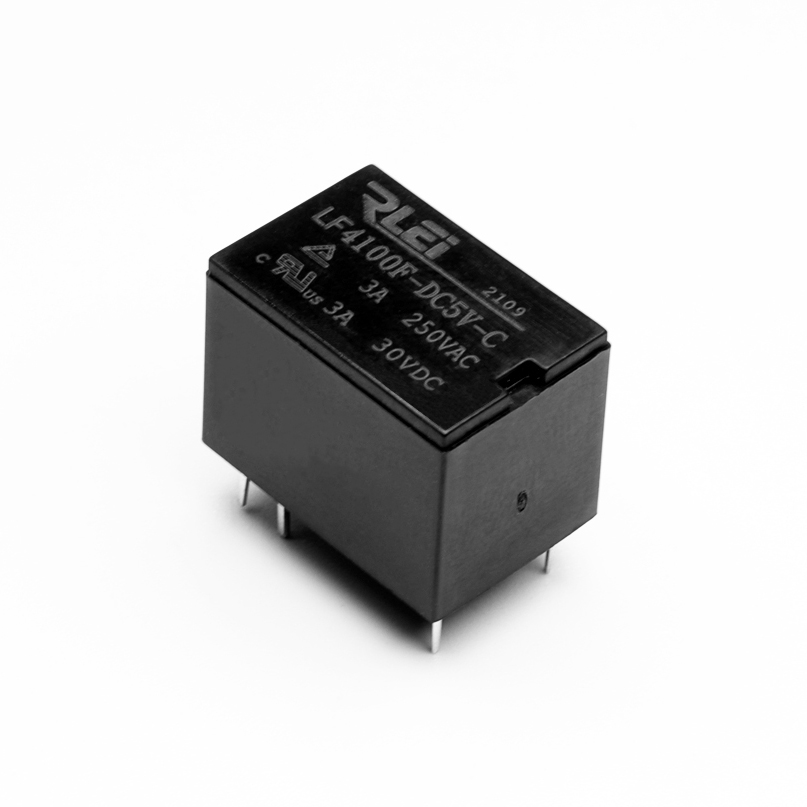

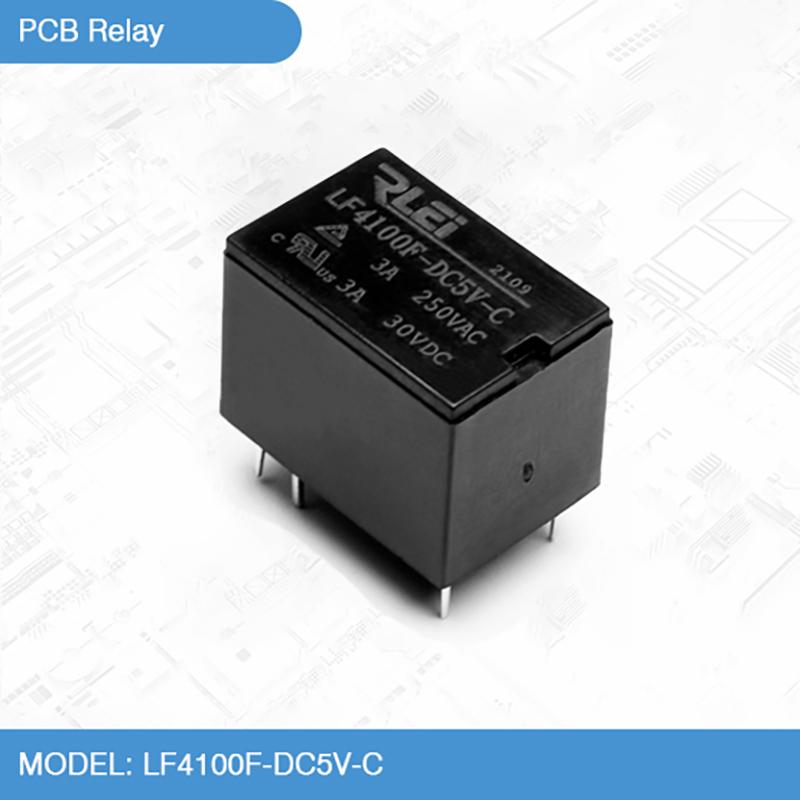

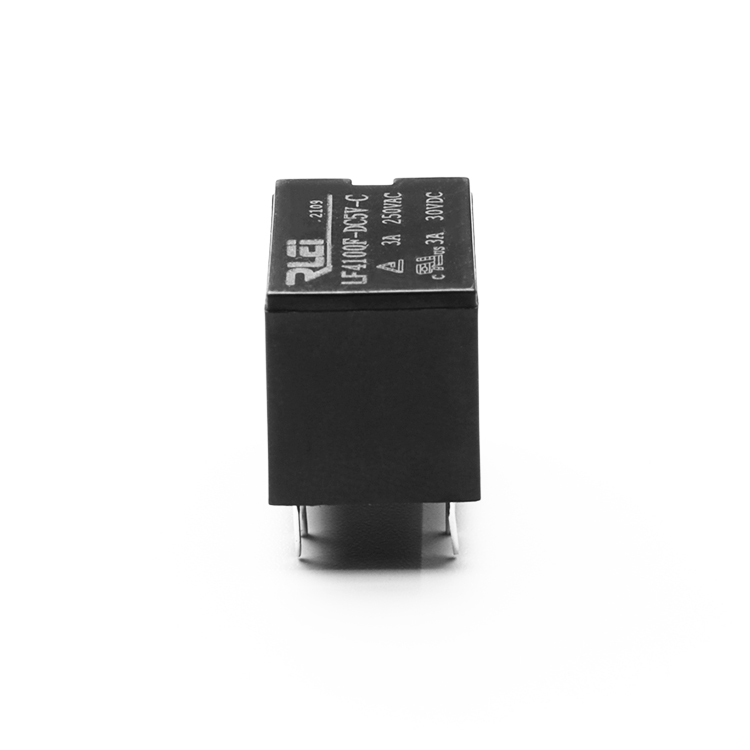

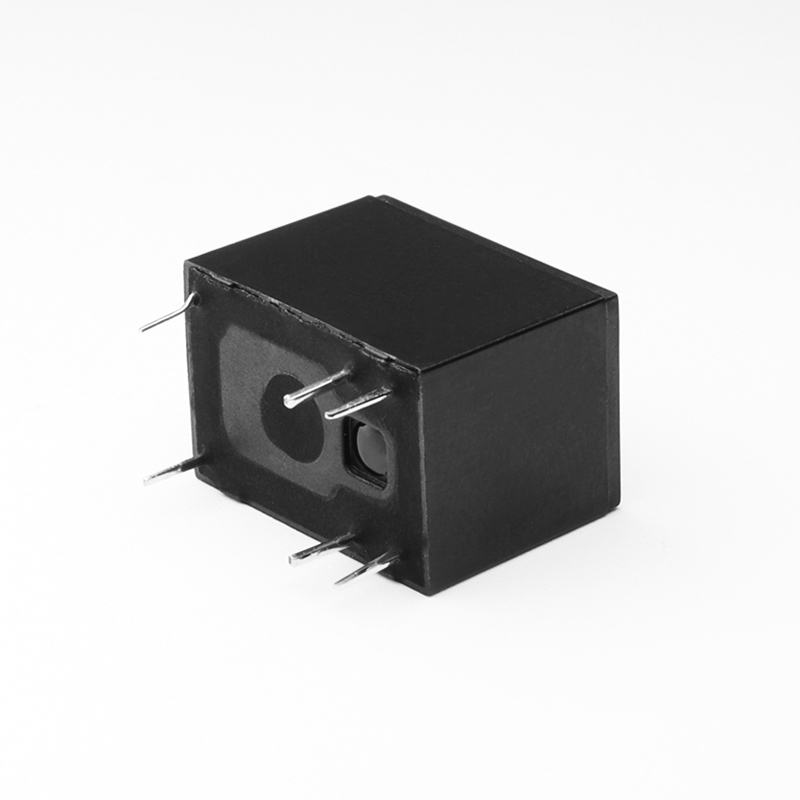

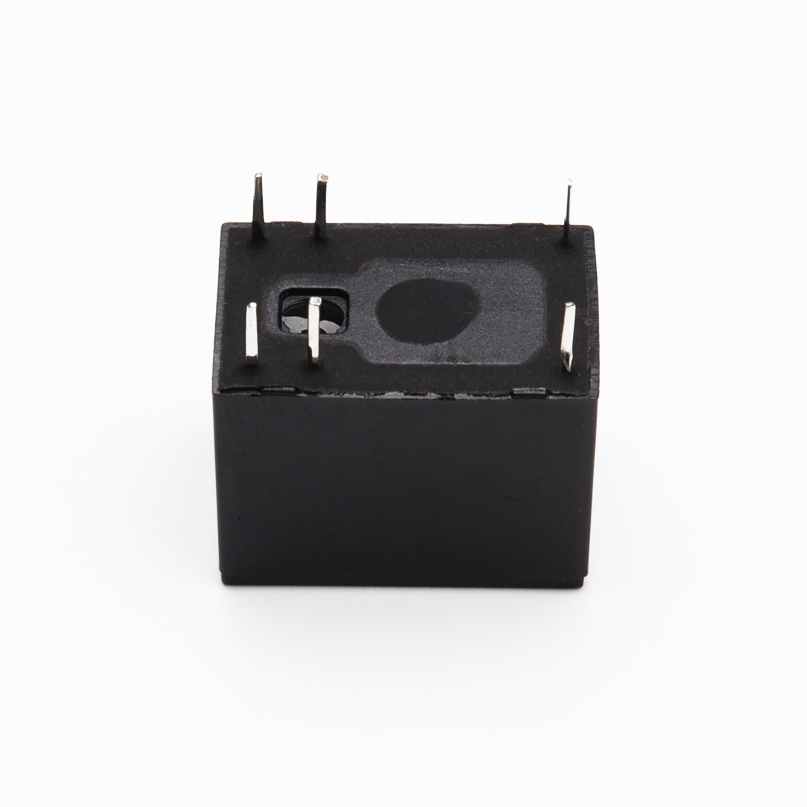

LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay
LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay
LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay
LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay
LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay
LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay

LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay

The 4100F relay is suitable for a variety of application scenarios that require low-cost, high-efficiency relays, such as automation control, signal transmission, power switching, etc. Its low price and good performance make it widely used in industrial automation and electronic devices ‌.

LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay

Select the number of specifications

Please check the product information you want!

产品详情


Model Description
























LF 4100F 6VDC -C

ROCFLY Enterprise LF Series





Design Codee








Coil Voltage
DC3V5V 6V 9V 12V 24V


Contact Form
1C: 1 Group conversion













Parameters of coil
Rated voltage
DC(V)		 Coil Resistance±10%(Ω) Pull-In Voltage
(Max.)		 Release voltage
(Min.)		 Over load voltage(W)
0.15W 0.2W 0.36W
3 60 45 25 2.25 0.3 3.90
5 167 120 70 3.75 0.5 6.50
6 240 180 100 4.50 0.6 7.80
9 540 400 220 6.75 0.9 1.70
12 960 720 400 9.00 1.2 15.60
24 3840 2880 1600 18.00 2.4 31.20


























Technical parameters




Dimension 15.5 X 10.5 X 11.8mm
Contact Contact form 1C
Ratedload 3A 250VAC 3A 30VDC
Max switching voltage 300VAC 60VDC
Max switching cuttent 3A
Max switching power 750VAC/90W
Contact resistance ≤100mΩ
Material Silver alloy
Electrical life(Frequency 1S on, 1S off) ≥100000 (Frequency 1S on, 1S off)
Mechanical life(Frequency 300times/min) ≥10000000 (Frequency 300times/min)
Nominal voltage (DC) DC:3V~48V


Coil power (DC) DC:0.36w


Operate time ≤10ms
Release time ≤5ms
Dielictricstength Between contacts 1000VAC/1min(Current of leakage 1mA)
Between contacts and coil 1800VAC/1min(Current of leakage 1mA)
Insulation resistance ≥1000mΩ(500VDC)
Ambient temperature -55℃~+70℃(No condensation)
Ambient humidity 35%~80%RH
Vibrate 10~55Hz1.5mm
Install model PCB PCB printing board type
Weight About 3.5g

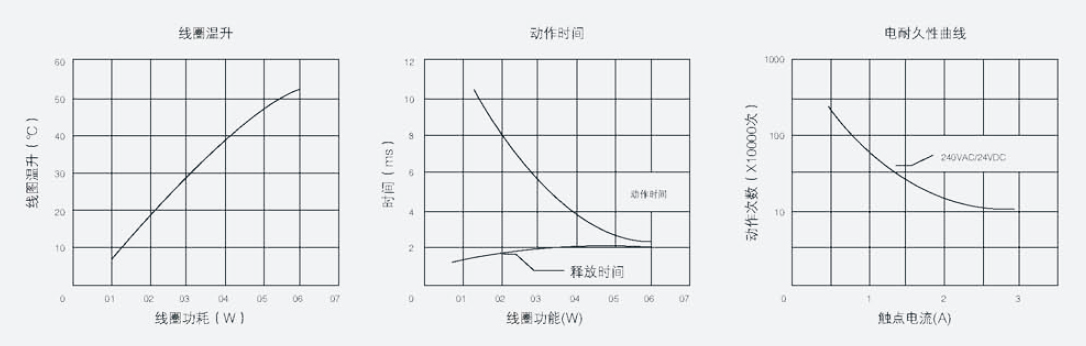

Curve Performance Chart

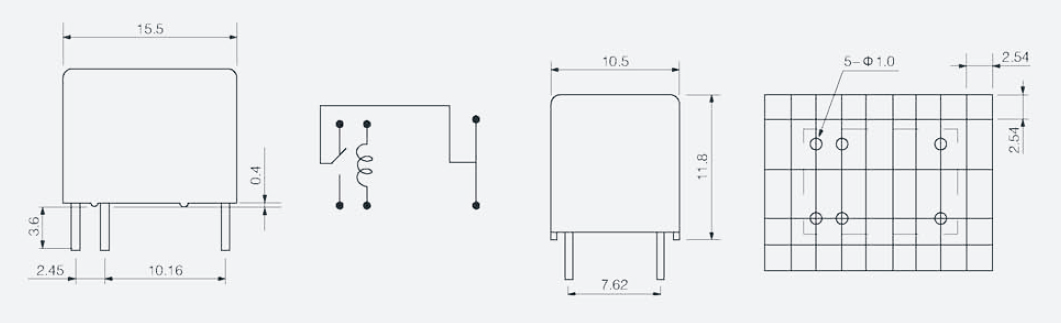

Installation size and wiring










































No comment

产品详情


Model Description
























LF 4100F 6VDC -C

ROCFLY Enterprise LF Series





Design Codee








Coil Voltage
DC3V5V 6V 9V 12V 24V


Contact Form
1C: 1 Group conversion













Parameters of coil
Rated voltage
DC(V)		 Coil Resistance±10%(Ω) Pull-In Voltage
(Max.)		 Release voltage
(Min.)		 Over load voltage(W)
0.15W 0.2W 0.36W
3 60 45 25 2.25 0.3 3.90
5 167 120 70 3.75 0.5 6.50
6 240 180 100 4.50 0.6 7.80
9 540 400 220 6.75 0.9 1.70
12 960 720 400 9.00 1.2 15.60
24 3840 2880 1600 18.00 2.4 31.20


























Technical parameters




Dimension 15.5 X 10.5 X 11.8mm
Contact Contact form 1C
Ratedload 3A 250VAC 3A 30VDC
Max switching voltage 300VAC 60VDC
Max switching cuttent 3A
Max switching power 750VAC/90W
Contact resistance ≤100mΩ
Material Silver alloy
Electrical life(Frequency 1S on, 1S off) ≥100000 (Frequency 1S on, 1S off)
Mechanical life(Frequency 300times/min) ≥10000000 (Frequency 300times/min)
Nominal voltage (DC) DC:3V~48V


Coil power (DC) DC:0.36w


Operate time ≤10ms
Release time ≤5ms
Dielictricstength Between contacts 1000VAC/1min(Current of leakage 1mA)
Between contacts and coil 1800VAC/1min(Current of leakage 1mA)
Insulation resistance ≥1000mΩ(500VDC)
Ambient temperature -55℃~+70℃(No condensation)
Ambient humidity 35%~80%RH
Vibrate 10~55Hz1.5mm
Install model PCB PCB printing board type
Weight About 3.5g

































Curve Performance Chart











































Installation size and wiring










































LF4100F 6 Pin 5V 9V 12v 24V Small Signal Relay
The 4100F relay is suitable for a variety of application scenarios that require low-cost, high-efficiency relays, such as automation control, signal transmission, power switching, etc. Its low price and good performance make it widely used in industrial automation and electronic devices ‌.
