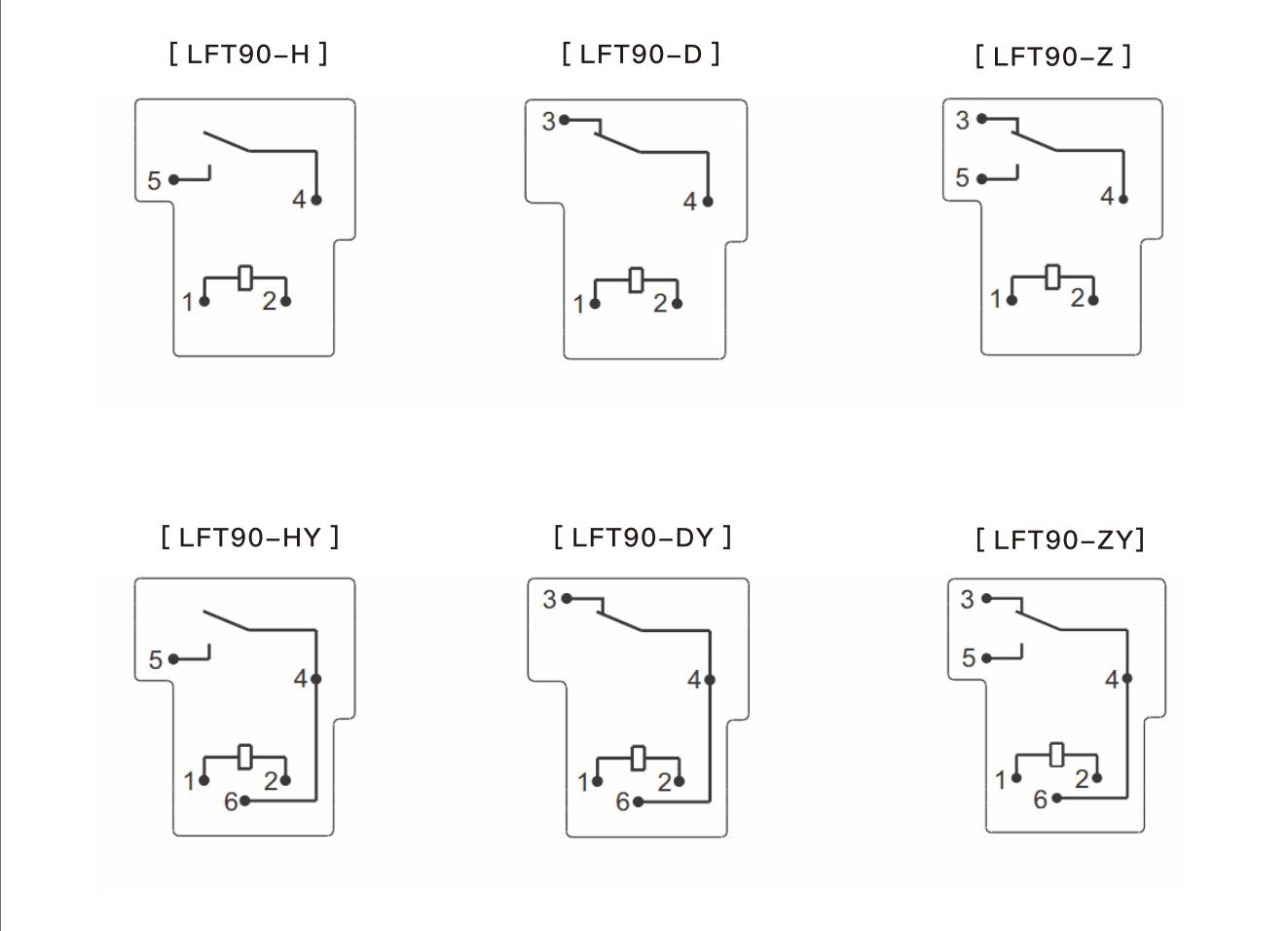

  • Wiring Diagram

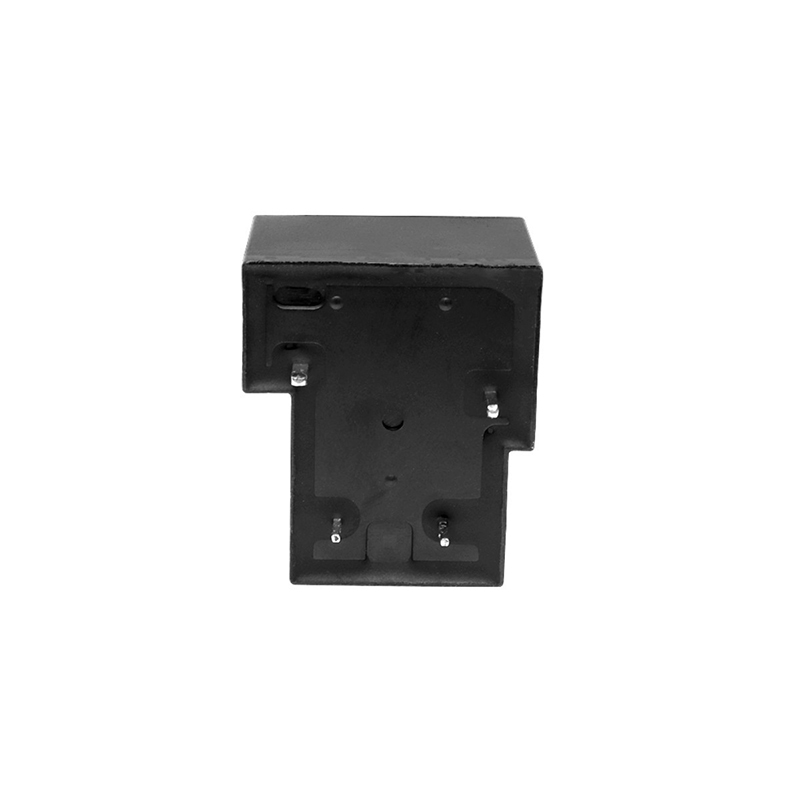

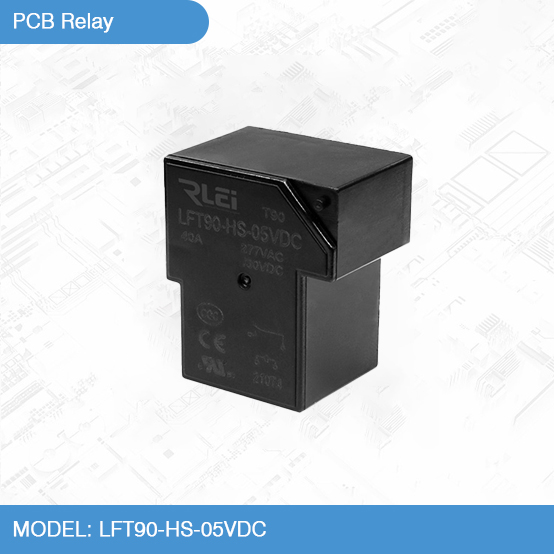

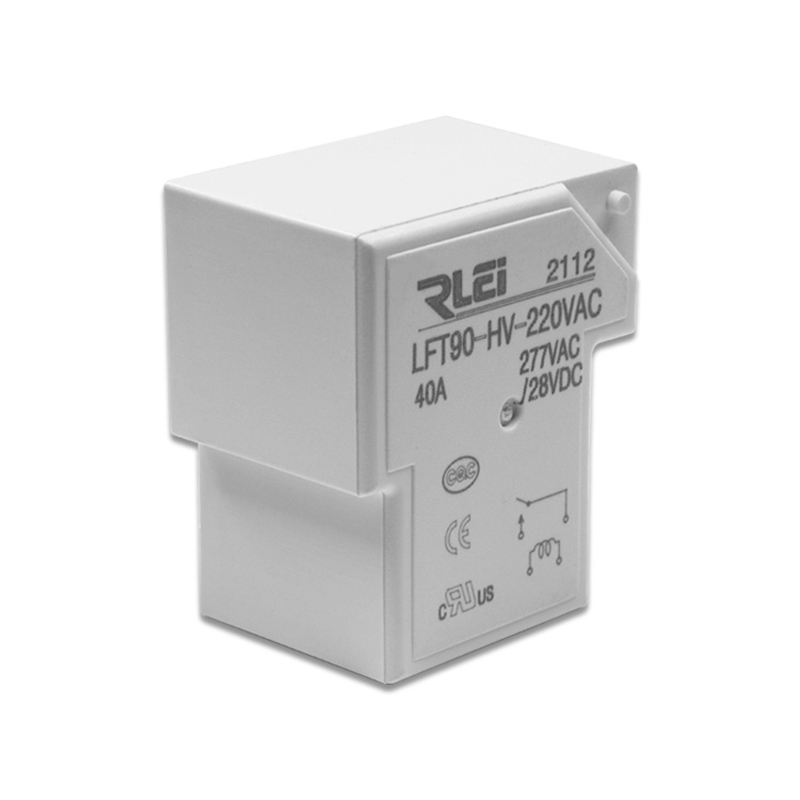

T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay
T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay
T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay
T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay
T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay

T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay

T90 relays are available in a variety of voltage specifications including 5V, 6V, 9V, 12V, 18V, 24V, 48V, and 110V. Its minimum load is 500mA, conversion voltage is 250VAC/30VDC, conversion current is 30A, and conversion power is 7200VA/560W. The suction time is 15ms, the release time is 10ms, and the mechanical service life can reach more than 100,000 times ‌

T90 30a 40a Electromechanical Normally Open Mini 5-48V T90 Pcb 4 Pin 5 Pin 6 Pin Power Electric 12V Relay

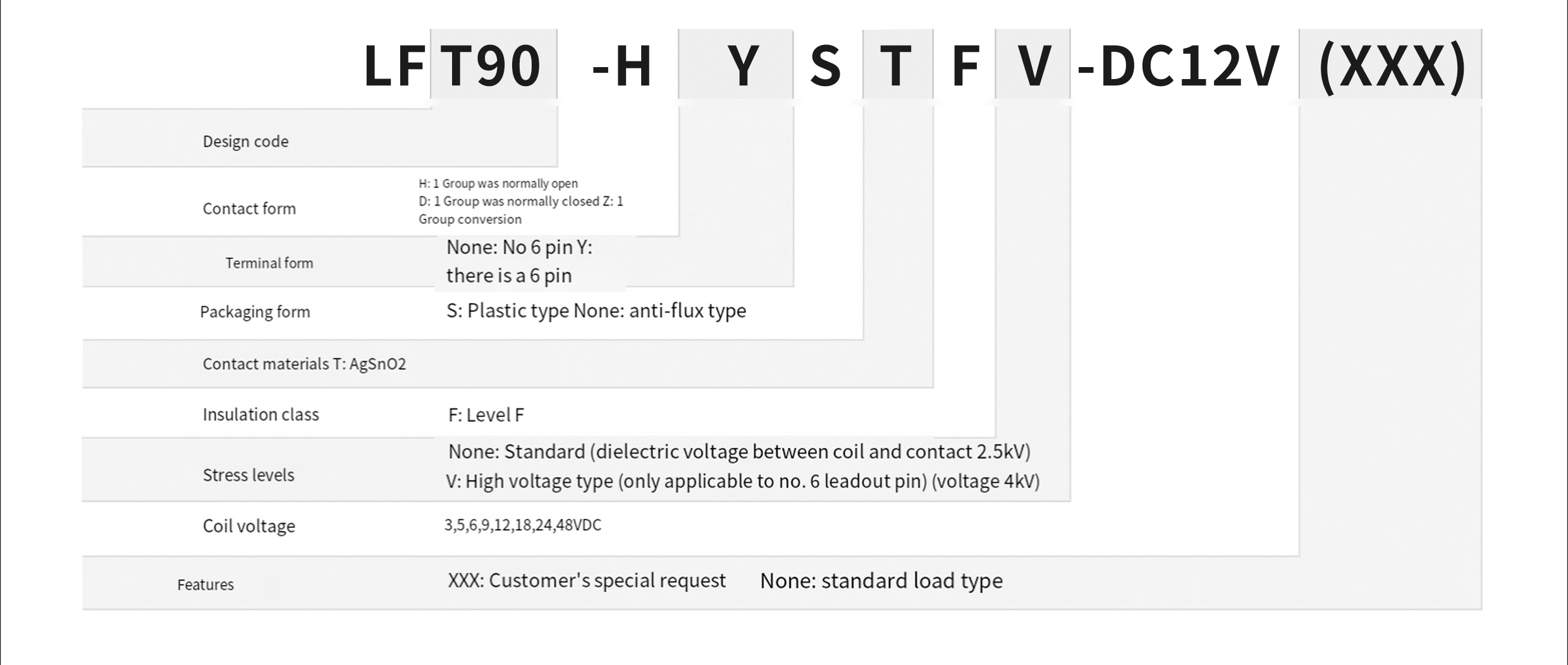

Select the number of specifications

Please check the product information you want!

Product Features Dimensions of Installation Wiring Diagram


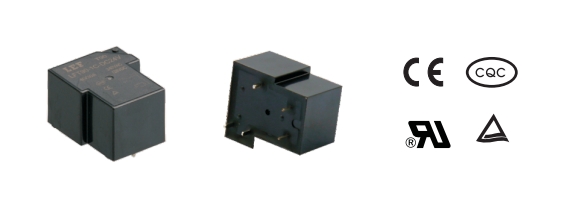

★ 30/40A contact switching capability
★ Medium voltage between coil and contact 4kV

★ Creepage distance 5.5mm
★ Plastic seal type and flux proof type are available

★ UL insulation class: F class
★ Environmentally friendly products (RoHS)
★ Overall dimension: 32.2X27.5X20.4mm







All-copper coil with standard turns

Stronger suction andmore stable performance

Flame retardant plastic shell

Has better thickness and smoothness

Maintenance free and long service life

service life is more than100,000 times in normal environment


Electric cooker, microwave oven, steam oven, juicer, refrigerator, ar fryer, robot sweeper, dishwasher, washer,

dryer, electric fan, induction cooker, range hood, air conditioner, electric pressure cooker, water heater,automatic curtain, voice-controlled lamp, intelligent toilet.




Parameters of coil
Rated voltage
DC(V)		 Rated current
±10(mA)		 Coil resistance
±10%(Ω)		 Maximum continuous applied voltage(V) Pull-In Voltage
(Max.)		 Release voltage
(Min.)		 Rated power consumption(W)
3 310 10 Rated voltage X 110% ≤Rated voltage 75% ≥Rated voltage 10% 0.93
5 18.6 27
6 155 39
9 103 87
12 77.5 155
15 62 242
18 52 348
24 39 619
36 26 1394
48 19 2477







Rated voltage
AC(V)		 Rated current
±10(mA)		 Coil resistance
±10%(Ω)		 Maximum continuous applied voltage(V) Pull-In Voltage
(Max.)		 Release voltage
(Min.)		 Rated power onsumption
(VA)
12 125 33.6 Rated voltage X 110% ≤Rated voltage 80% ≥Rated voltage 30% 1.5
24 63 135
48 31 538
110 14 2820
220 7 11300
240 6 13440
















Technical parameters




Dimension 32X27.5X19.8mm
Contact Contact form 1Z,1H,1D
Ratedload 30A 40A
Max switching voltage 240VAC/28VDC
Contact resistance ≤100mQ
Material Silver alloy
Electrical life ≥105
Mechanical life ≥107
(23℃)Max.allowed voltage DC:≤75% × Rated voltage
AC:≤80% × Rated voltage
(23℃)Release voltage DC:≤10% × Rated voltage
AC:≤30% × Rated voltage
(23℃)Max.allowed voltage 110%X Rated voltage
Nominal voltage (DC) DC:3V~110V
(AC) AC:12~240V
Coll power (DC) DC:0.93W
(AC) AC:1.5VA
Operate time ≤15ms
Release time ≤10ms
Dielictricstength Between contacts 1800VAC/1min(Current of leakage 1mA)
Between contacts and coil 2500VAC/1min、4500VAC/min(Current of leakage 1mA)
Insulation resistance ≥1000mo(500VDC)
Ambient temperature -55℃~+70℃(No condensation)
Ambient humidity 35%~80%RH
Atmospheric pressure 86~106KPa
Resistance stamping 10G(Sine wave half pulse：11ms)
Vibration Resistance 10~55Hz Double amplitude：1.5mm
Install model PCB PCB printing board type
Weight About 24g
Package InnerB Box Quantity Box：50PCS/Box
Carton Quantity 500pcs/ctn
Meas 353X200X305mm
Weight N.W：11.8KG/CTNG.W：12.85KG/CTN






Remark：

1)No dimensional tolerances for the overall dimensions of product parts:

When the overall size is less than 1mm, the tolerance is ±0.2mm;

When the overall size is between 1 and 5mm, the tolerance is ±0.3mm; When the overall size is >5mm, the tolerance is ±0.4mm.

2)No tolerance ±0.1mm is specified in the mounting hole dimensions.


No comment

Product Features


★ 30/40A contact switching capability
★ Medium voltage between coil and contact 4kV

★ Creepage distance 5.5mm
★ Plastic seal type and flux proof type are available

★ UL insulation class: F class
★ Environmentally friendly products (RoHS)
★ Overall dimension: 32.2X27.5X20.4mm







All-copper coil with standard turns

Stronger suction andmore stable performance

Flame retardant plastic shell

Has better thickness and smoothness

Maintenance free and long service life

service life is more than100,000 times in normal environment


Electric cooker, microwave oven, steam oven, juicer, refrigerator, ar fryer, robot sweeper, dishwasher, washer,

dryer, electric fan, induction cooker, range hood, air conditioner, electric pressure cooker, water heater,automatic curtain, voice-controlled lamp, intelligent toilet.




Parameters of coil
Rated voltage
DC(V)		 Rated current
±10(mA)		 Coil resistance
±10%(Ω)		 Maximum continuous applied voltage(V) Pull-In Voltage
(Max.)		 Release voltage
(Min.)		 Rated power consumption(W)
3 310 10 Rated voltage X 110% ≤Rated voltage 75% ≥Rated voltage 10% 0.93
5 18.6 27
6 155 39
9 103 87
12 77.5 155
15 62 242
18 52 348
24 39 619
36 26 1394
48 19 2477







Rated voltage
AC(V)		 Rated current
±10(mA)		 Coil resistance
±10%(Ω)		 Maximum continuous applied voltage(V) Pull-In Voltage
(Max.)		 Release voltage
(Min.)		 Rated power onsumption
(VA)
12 125 33.6 Rated voltage X 110% ≤Rated voltage 80% ≥Rated voltage 30% 1.5
24 63 135
48 31 538
110 14 2820
220 7 11300
240 6 13440
















Technical parameters




Dimension 32X27.5X19.8mm
Contact Contact form 1Z,1H,1D
Ratedload 30A 40A
Max switching voltage 240VAC/28VDC
Contact resistance ≤100mQ
Material Silver alloy
Electrical life ≥105
Mechanical life ≥107
(23℃)Max.allowed voltage DC:≤75% × Rated voltage
AC:≤80% × Rated voltage
(23℃)Release voltage DC:≤10% × Rated voltage
AC:≤30% × Rated voltage
(23℃)Max.allowed voltage 110%X Rated voltage
Nominal voltage (DC) DC:3V~110V
(AC) AC:12~240V
Coll power (DC) DC:0.93W
(AC) AC:1.5VA
Operate time ≤15ms
Release time ≤10ms
Dielictricstength Between contacts 1800VAC/1min(Current of leakage 1mA)
Between contacts and coil 2500VAC/1min、4500VAC/min(Current of leakage 1mA)
Insulation resistance ≥1000mo(500VDC)
Ambient temperature -55℃~+70℃(No condensation)
Ambient humidity 35%~80%RH
Atmospheric pressure 86~106KPa
Resistance stamping 10G(Sine wave half pulse：11ms)
Vibration Resistance 10~55Hz Double amplitude：1.5mm
Install model PCB PCB printing board type
Weight About 24g
Package InnerB Box Quantity Box：50PCS/Box
Carton Quantity 500pcs/ctn
Meas 353X200X305mm
Weight N.W：11.8KG/CTNG.W：12.85KG/CTN

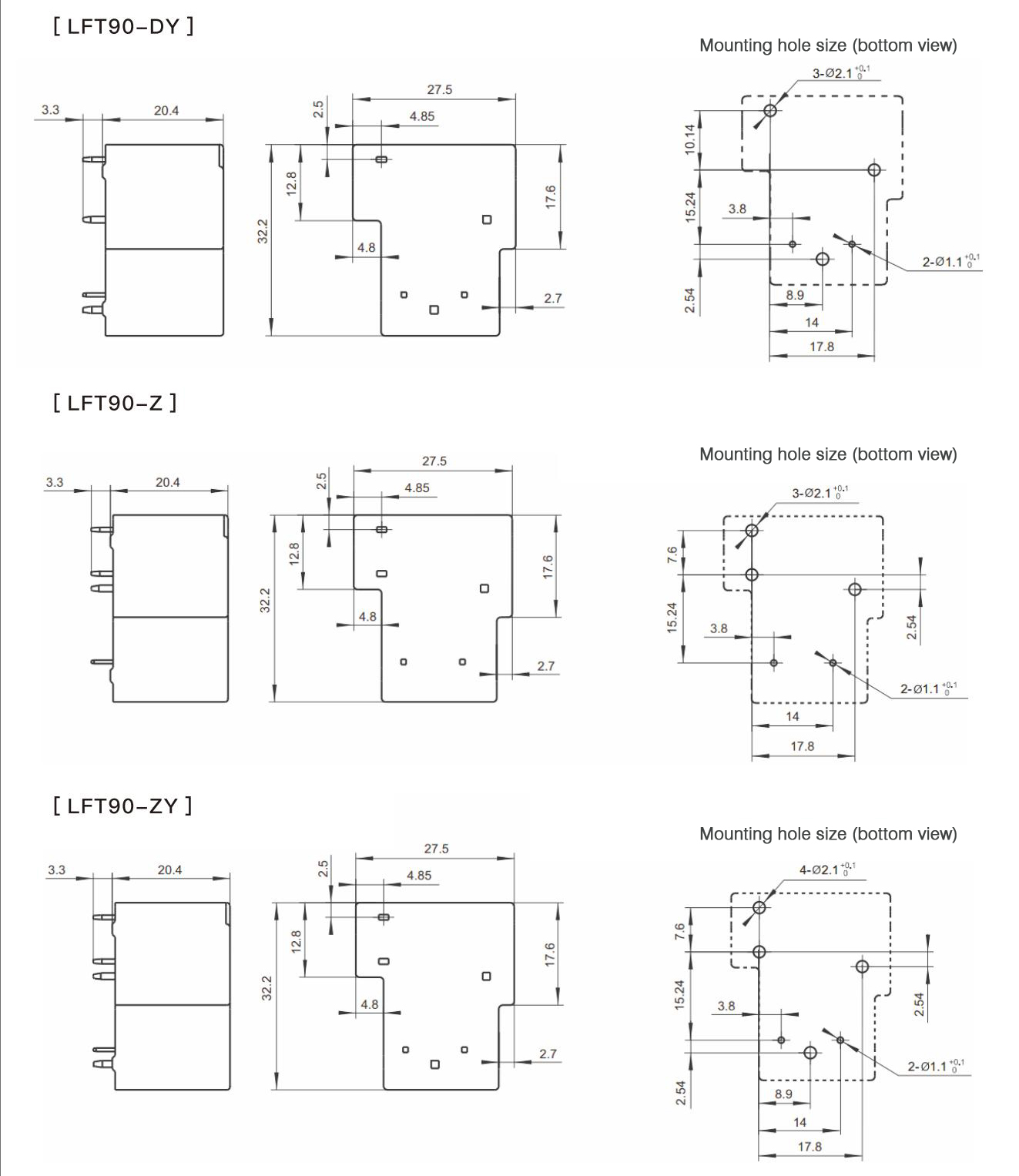

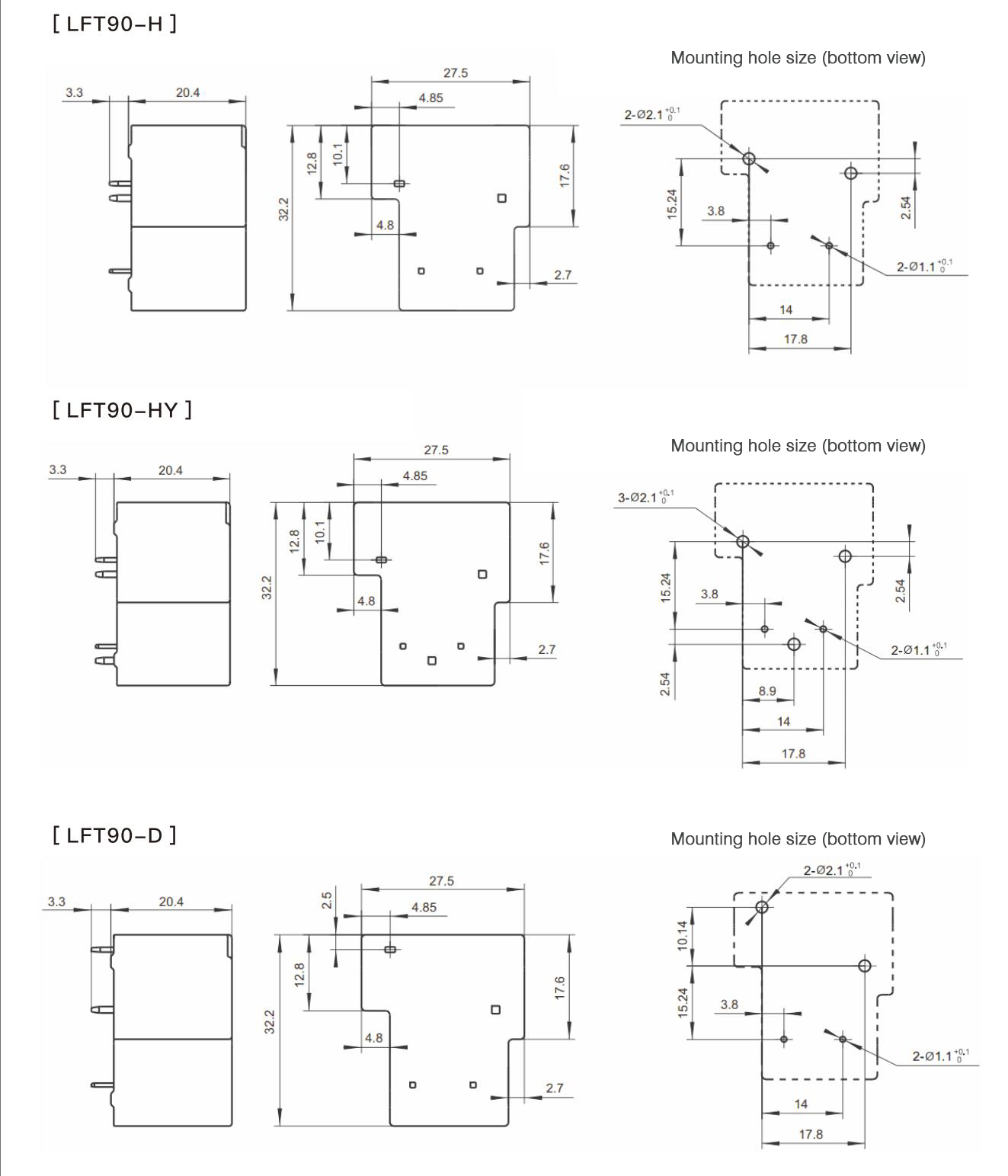

Dimensions of Installation
