  6. PCB Relay LF115 (ROC) 12VDC 16A 250VAC
  • Product
  • Product Detail
PCB Relay LF115 （ROC） 12VDC 16A 250VAC
PCB Relay LF115 （ROC） 12VDC 16A 250VAC
PCB Relay LF115 （ROC） 12VDC 16A 250VAC
PCB Relay LF115 （ROC） 12VDC 16A 250VAC
PCB Relay LF115 （ROC） 12VDC 16A 250VAC

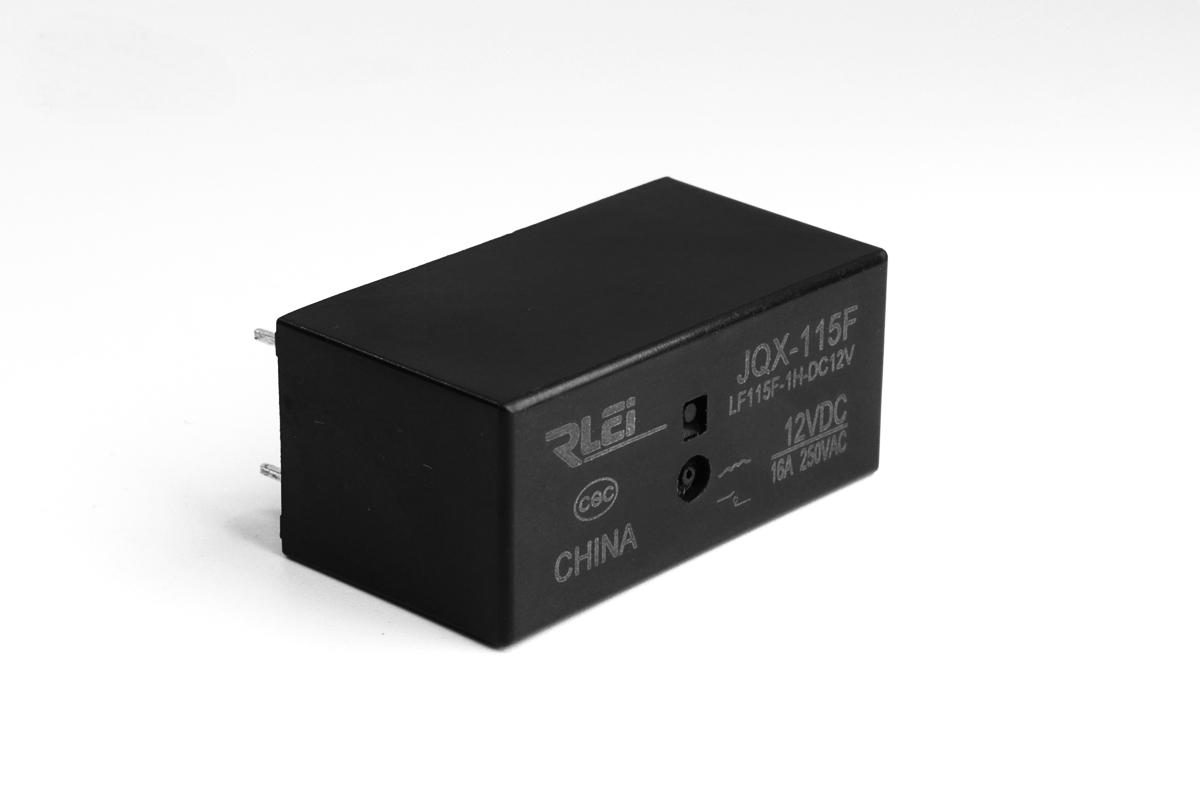

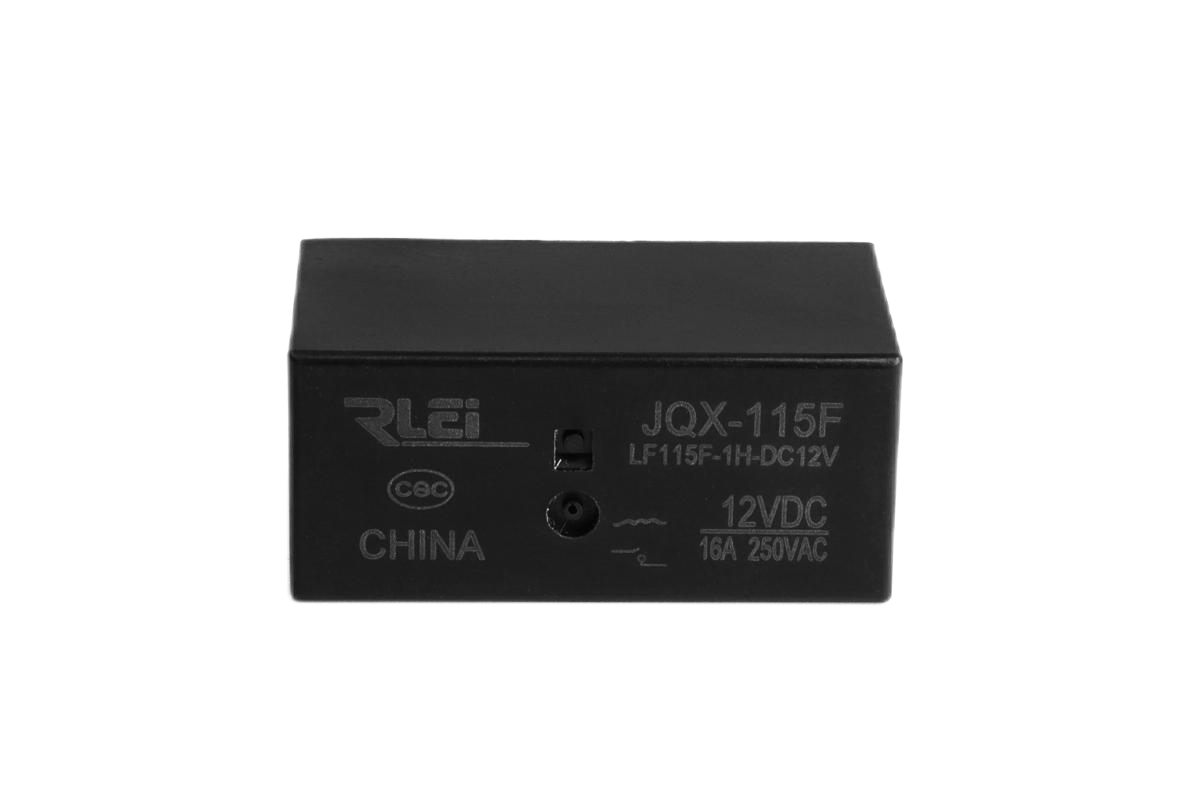

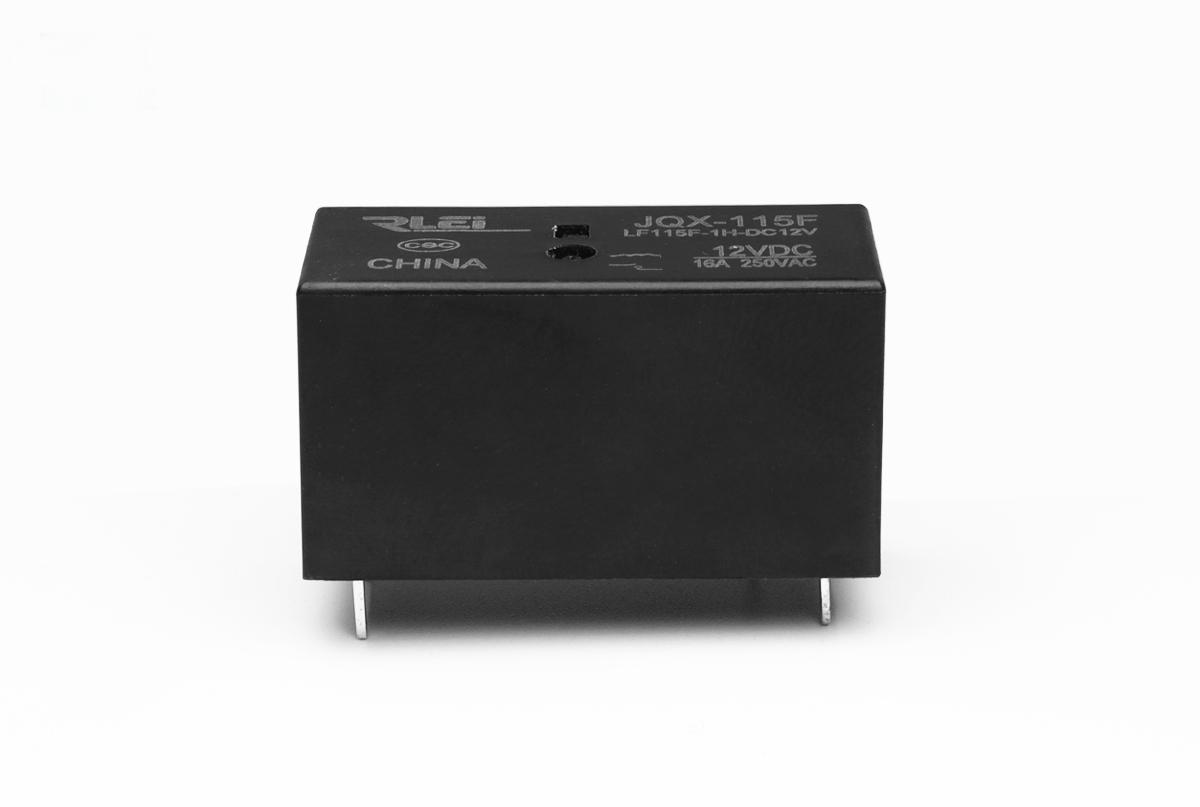

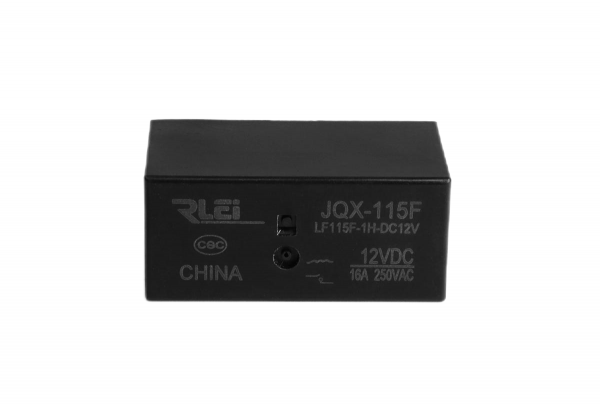

PCB Relay LF115 (ROC) 12VDC 16A 250VAC

16A contact switching capability
Low height, only 15.7mm
Dielectric withstand voltage between coil and contact 5kV
The creepage distance is 10mm
Meet the requirements of VDE0700/0631 for reinforced insulation
Can provide products that meet the requirements for reflow soldering use

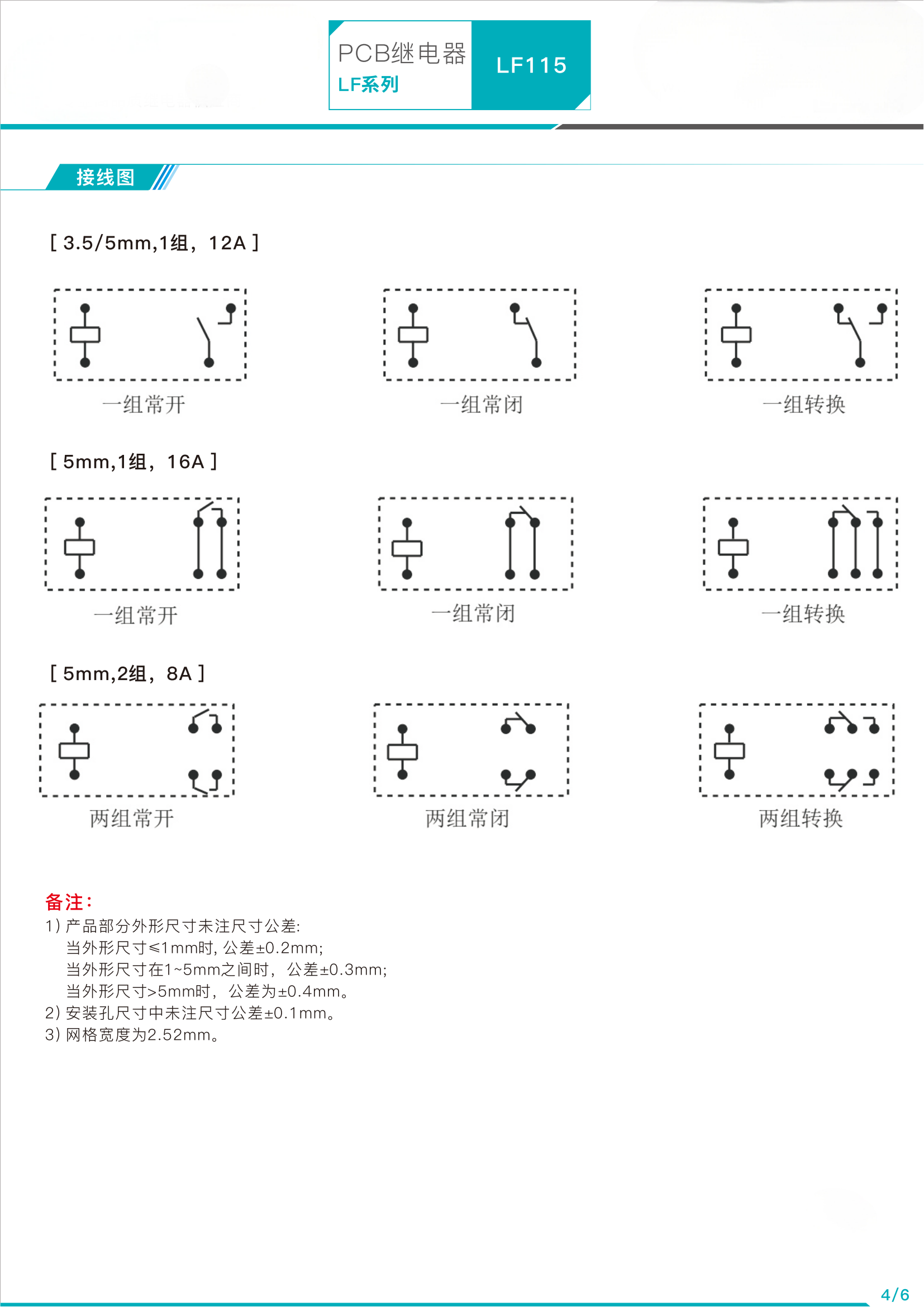

Multiple contact forms to choose from

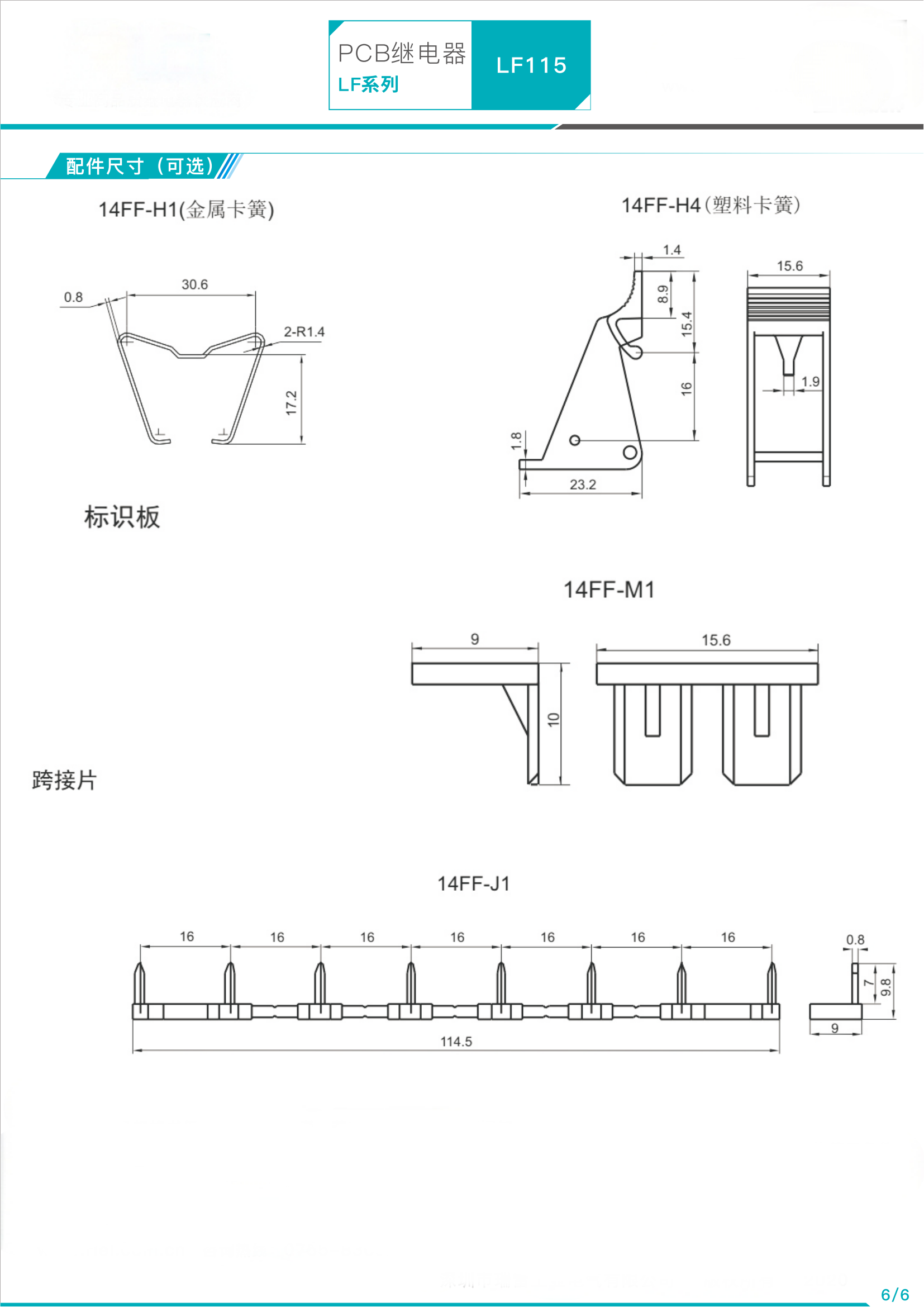

Equipped with multiple sockets to choose from
UL insulation grade: F insulation grade available for selection
Environmentally friendly products (compliant with RoHS)

PCB Relay LF115 （ROC） 12VDC 16A 250VAC

Select the number of specifications

Please check the product information you want!
Download Annex

Product Detail

16A contact switching capability

Low height, only 15.7mm

Dielectric withstand voltage between coil and contact 5kV

The creepage distance is 10mm

Meet the requirements of VDE0700/0631 for reinforced insulation

Can provide products that meet the requirements for reflow soldering use

Multiple contact forms to choose from

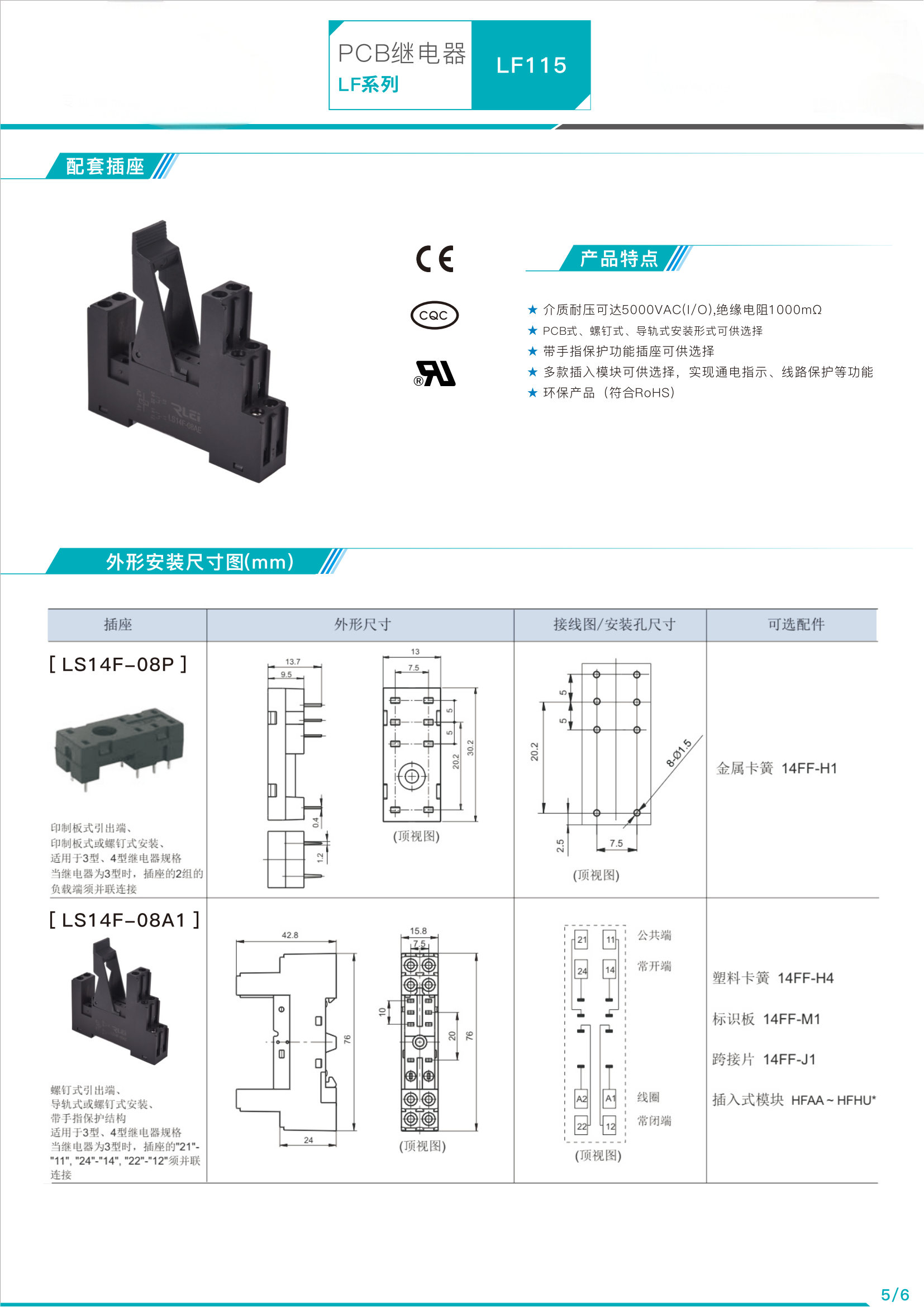

Equipped with multiple sockets to choose from

UL insulation grade: F insulation grade available for selection

Environmentally friendly products (compliant with RoHS)

No comment

Product Detail

16A contact switching capability

Low height, only 15.7mm

Dielectric withstand voltage between coil and contact 5kV

The creepage distance is 10mm

Meet the requirements of VDE0700/0631 for reinforced insulation

Can provide products that meet the requirements for reflow soldering use

Multiple contact forms to choose from

Equipped with multiple sockets to choose from

UL insulation grade: F insulation grade available for selection

Environmentally friendly products (compliant with RoHS)

PCB Relay LF115 (ROC) 12VDC 16A 250VAC
16A contact switching capability
Low height, only 15.7mm
Dielectric withstand voltage between coil and contact 5kV
The creepage distance is 10mm
Meet the requirements of VDE0700/0631 for reinforced insulation
Can provide products that meet the requirements for reflow soldering use
Multiple contact forms to choose from
Equipped with multiple sockets to choose from
UL insulation grade: F insulation grade available for selection
Environmentally friendly products (compliant with RoHS)
