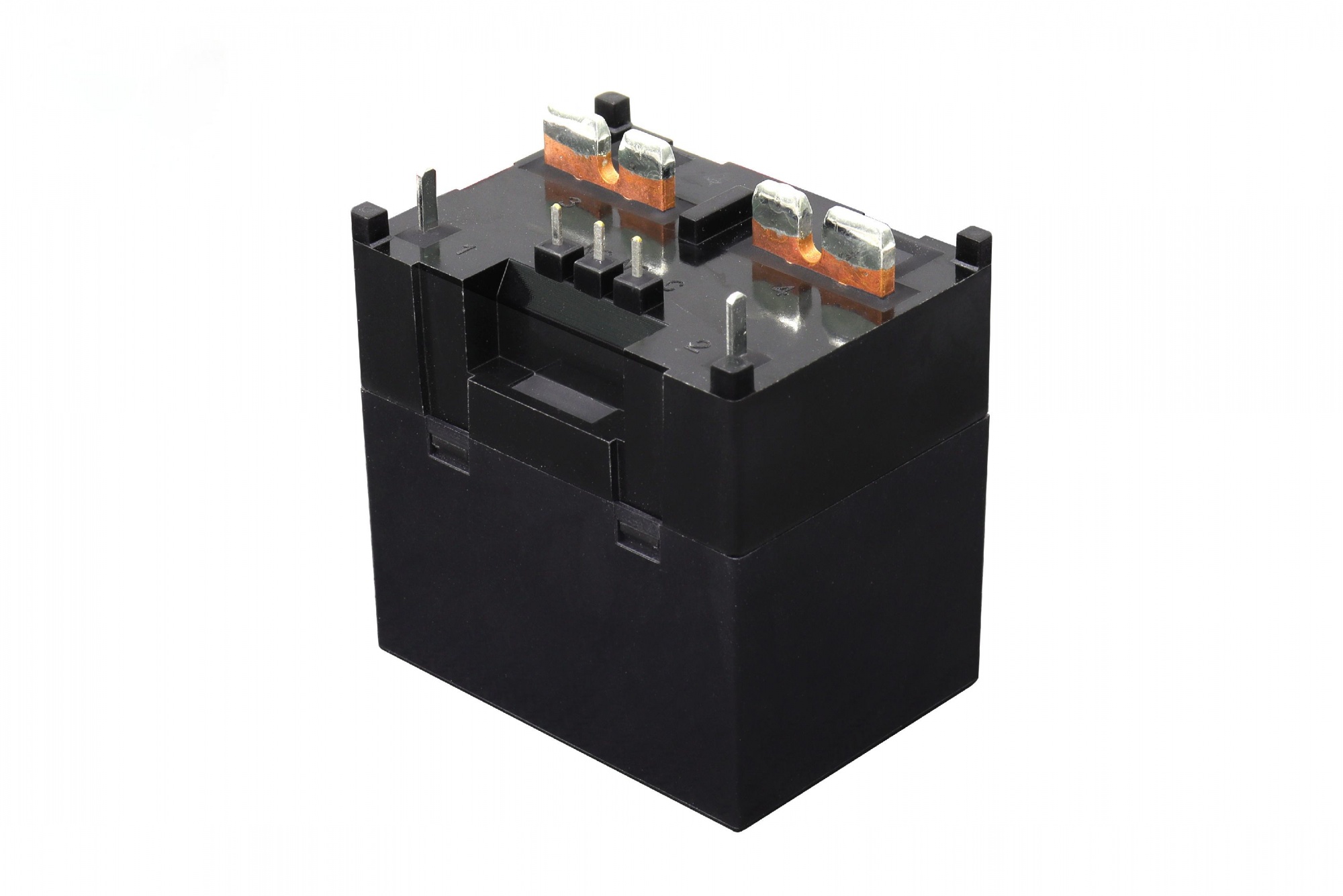

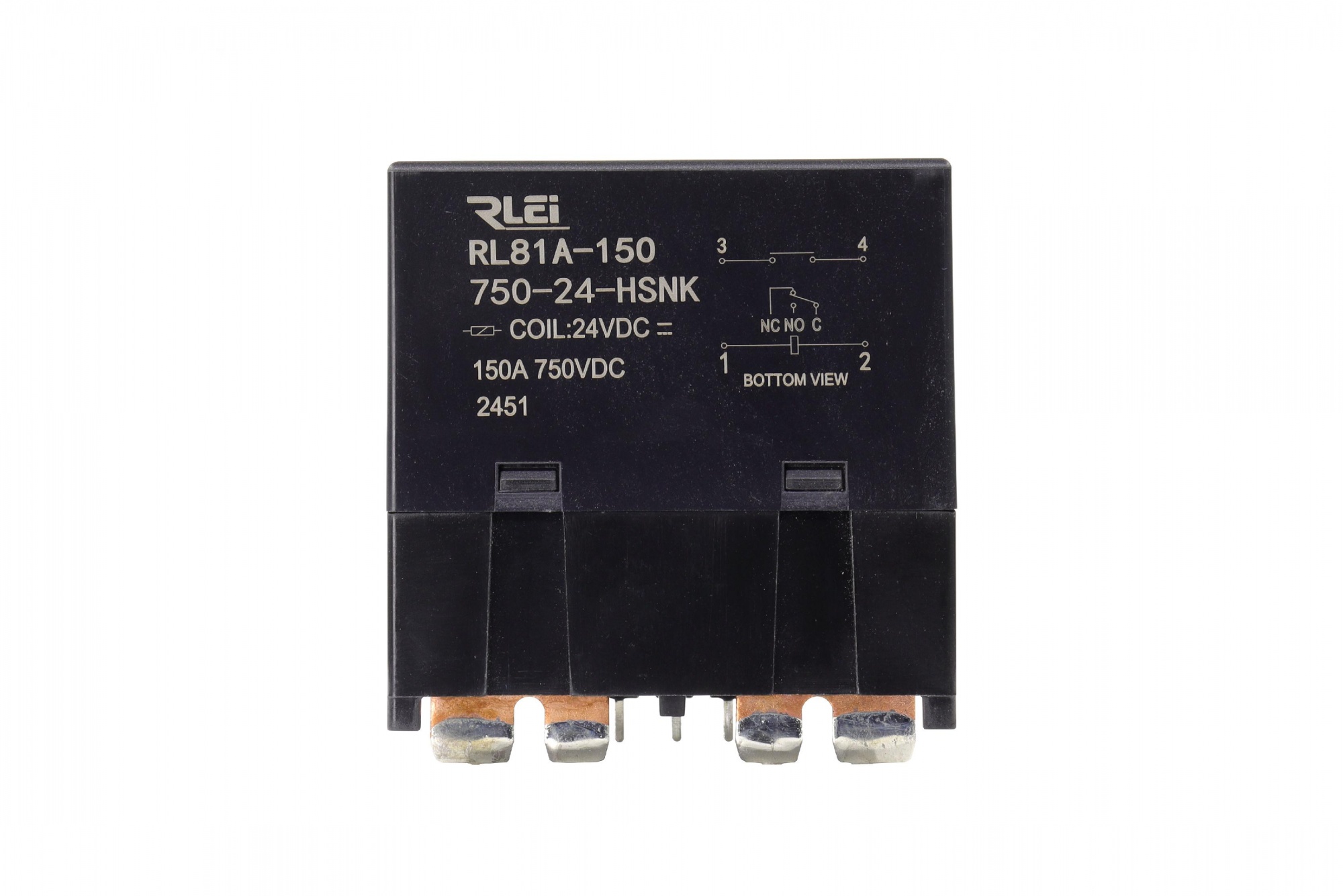

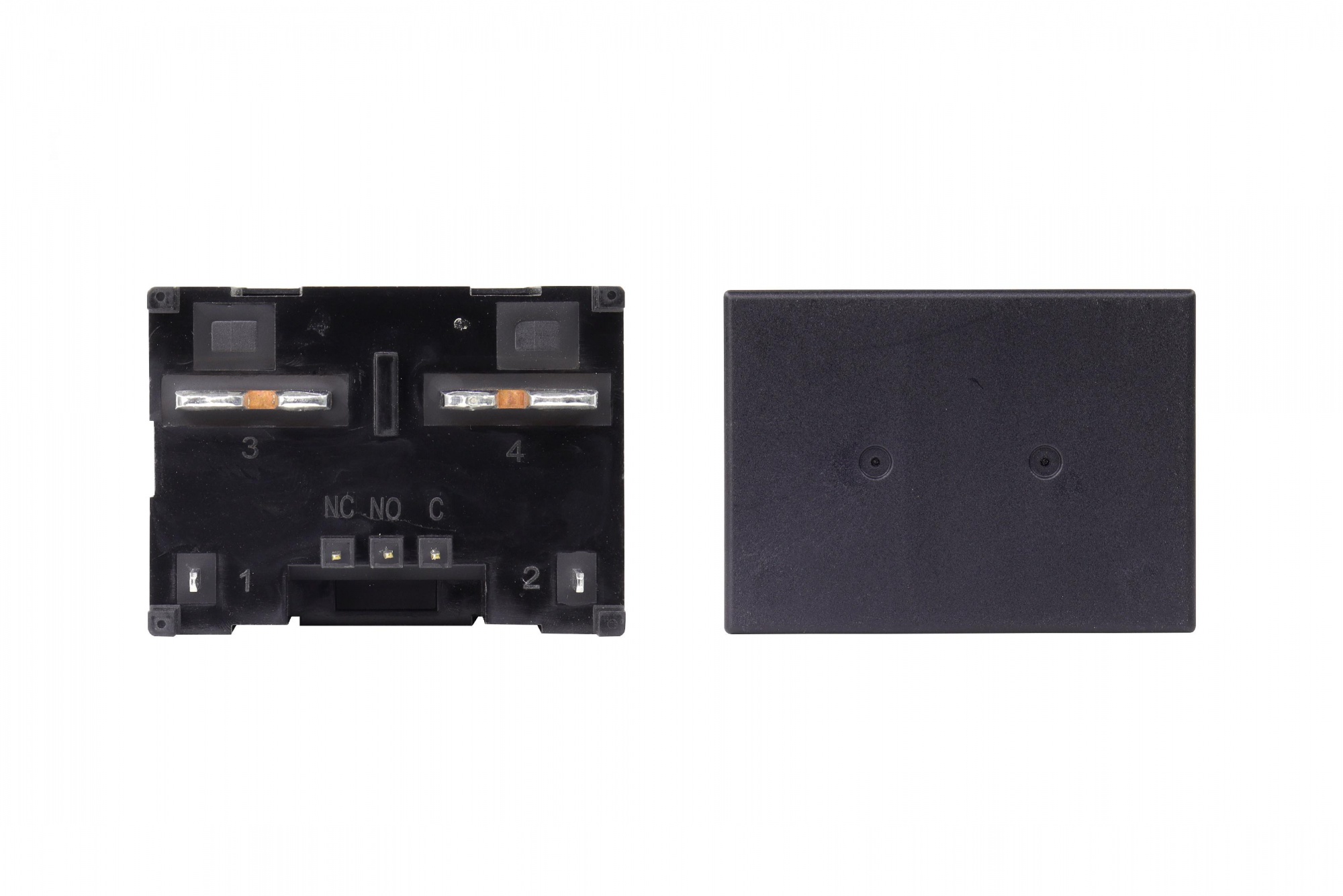

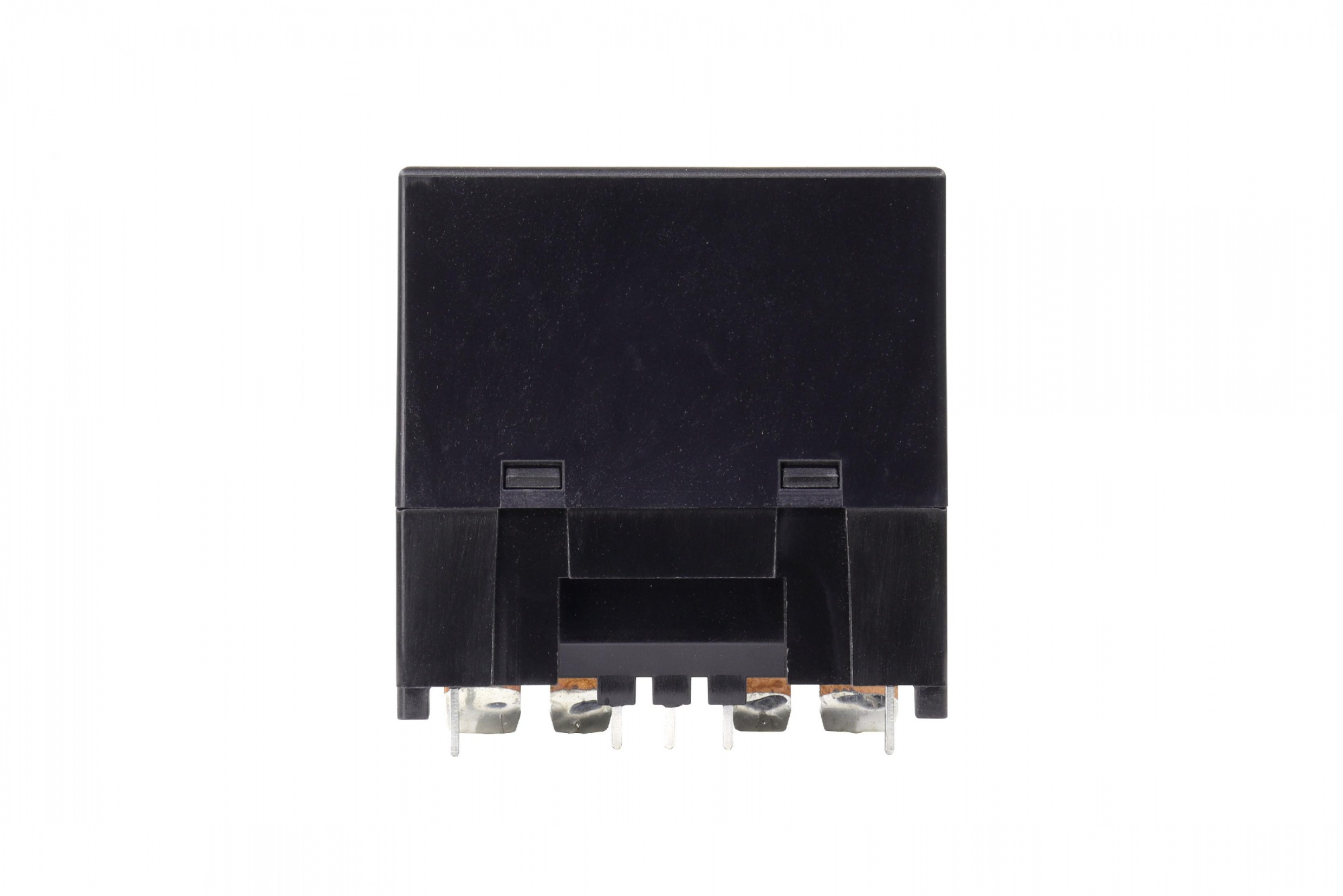

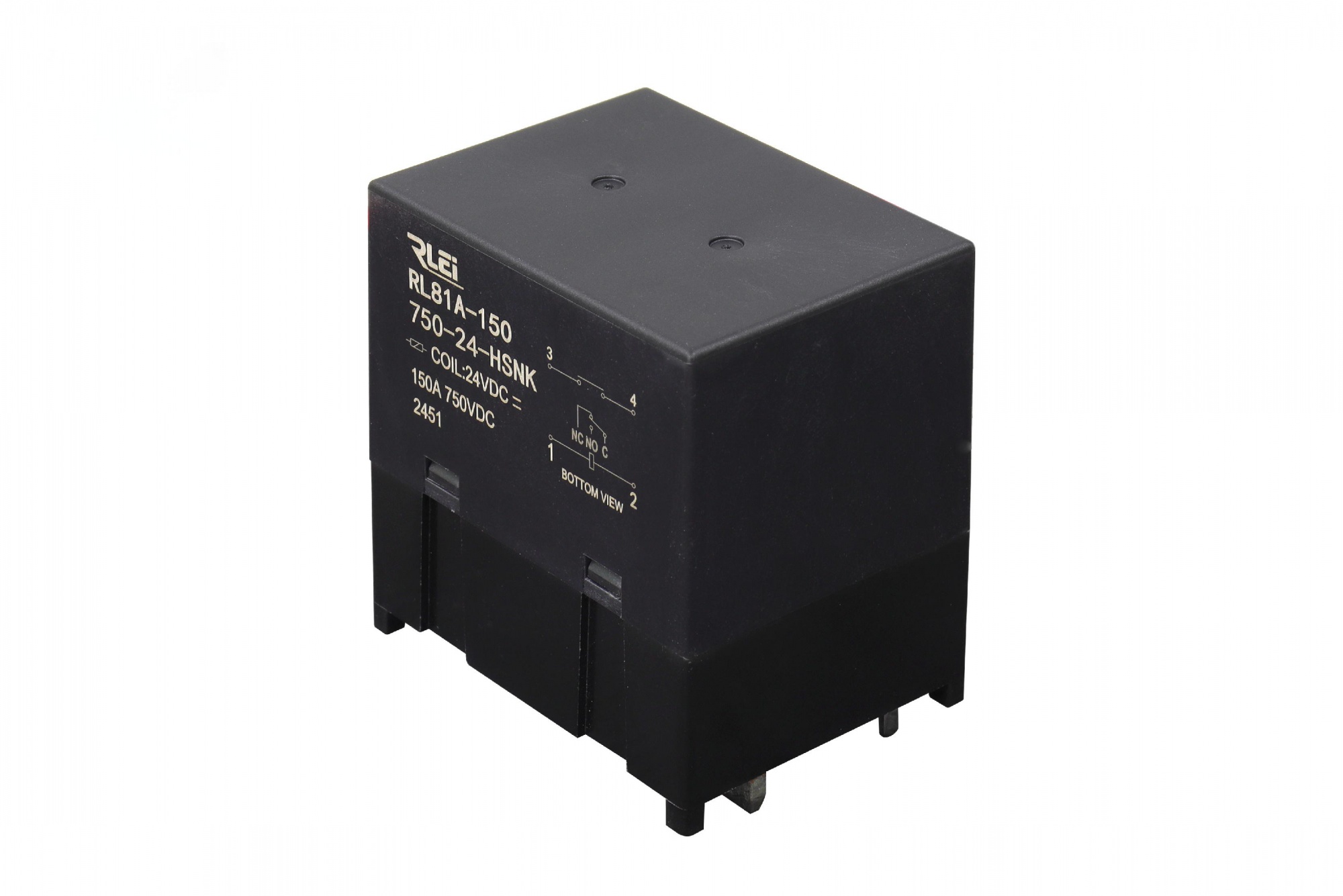

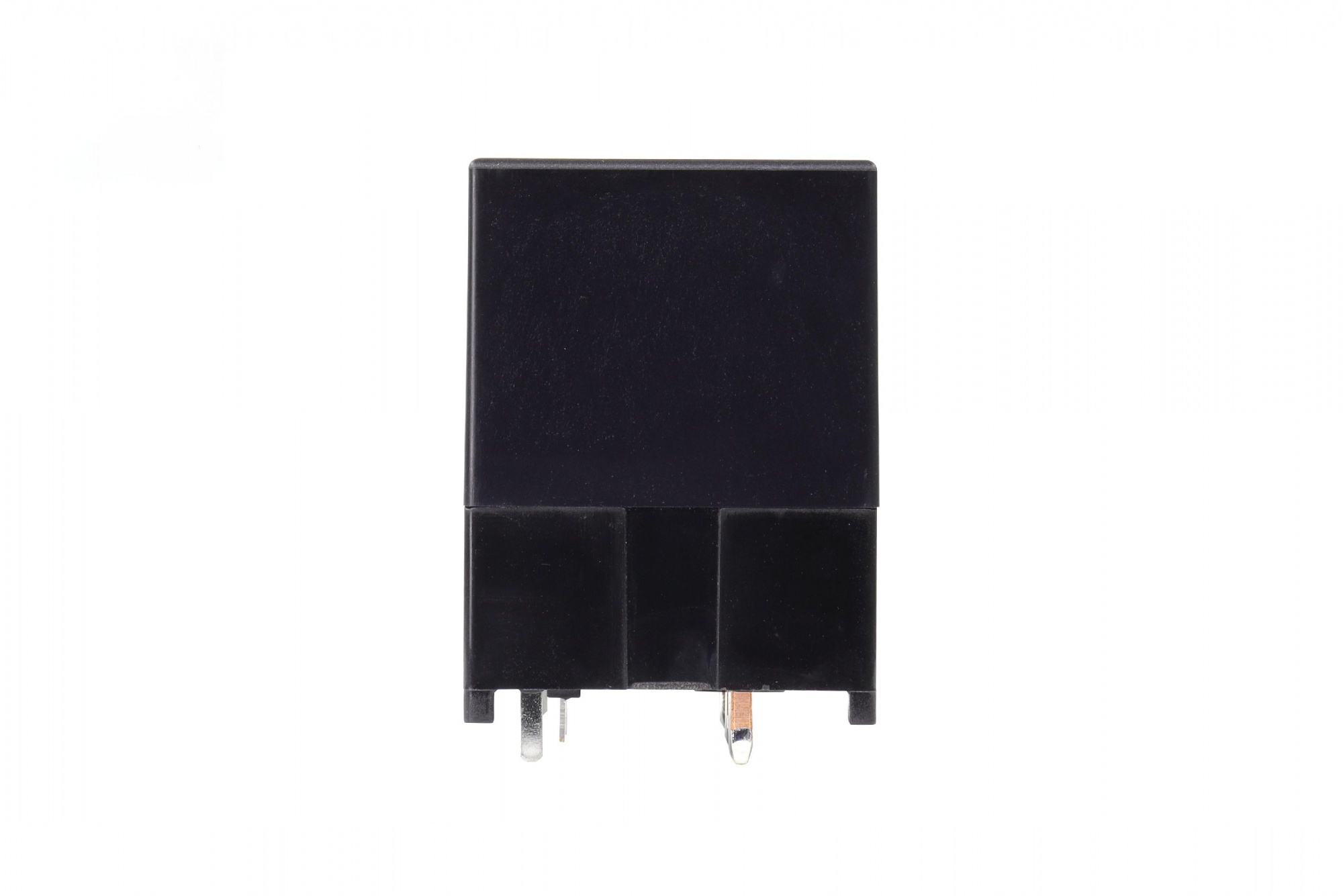

New Energy Relay RL81A-150 （ROC） 150A 750VDC
New Energy Relay RL81A-150 （ROC） 150A 750VDC
New Energy Relay RL81A-150 （ROC） 150A 750VDC
New Energy Relay RL81A-150 （ROC） 150A 750VDC
New Energy Relay RL81A-150 （ROC） 150A 750VDC
New Energy Relay RL81A-150 （ROC） 150A 750VDC
New Energy Relay RL81A-150 （ROC） 150A 750VDC

New Energy Relay RL81A-150 (ROC) 150A 750VDC

Environmental protection category: RT II
Unique magnetic arc extinguishing design, with 750V cut-off function
Unique contact structure, with higher surge resistance and current tolerance
High and low voltage withstand voltage above 4000V
Load non-polarity
Optional auxiliary contact type
Environmentally friendly product (RoHS compliant)

New Energy Relay RL81A-150 （ROC） 150A 750VDC

Select the number of specifications

Please check the product information you want!

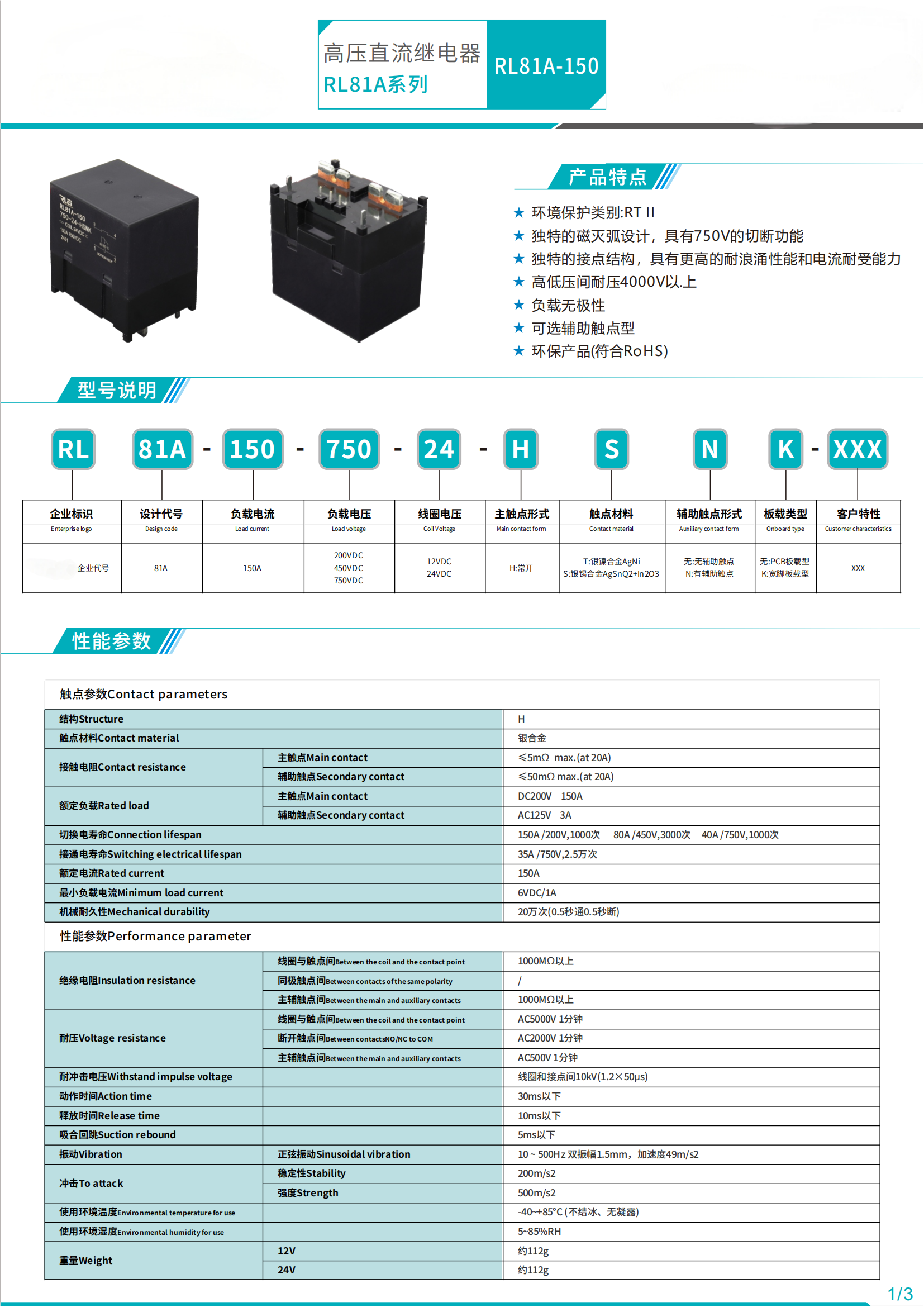

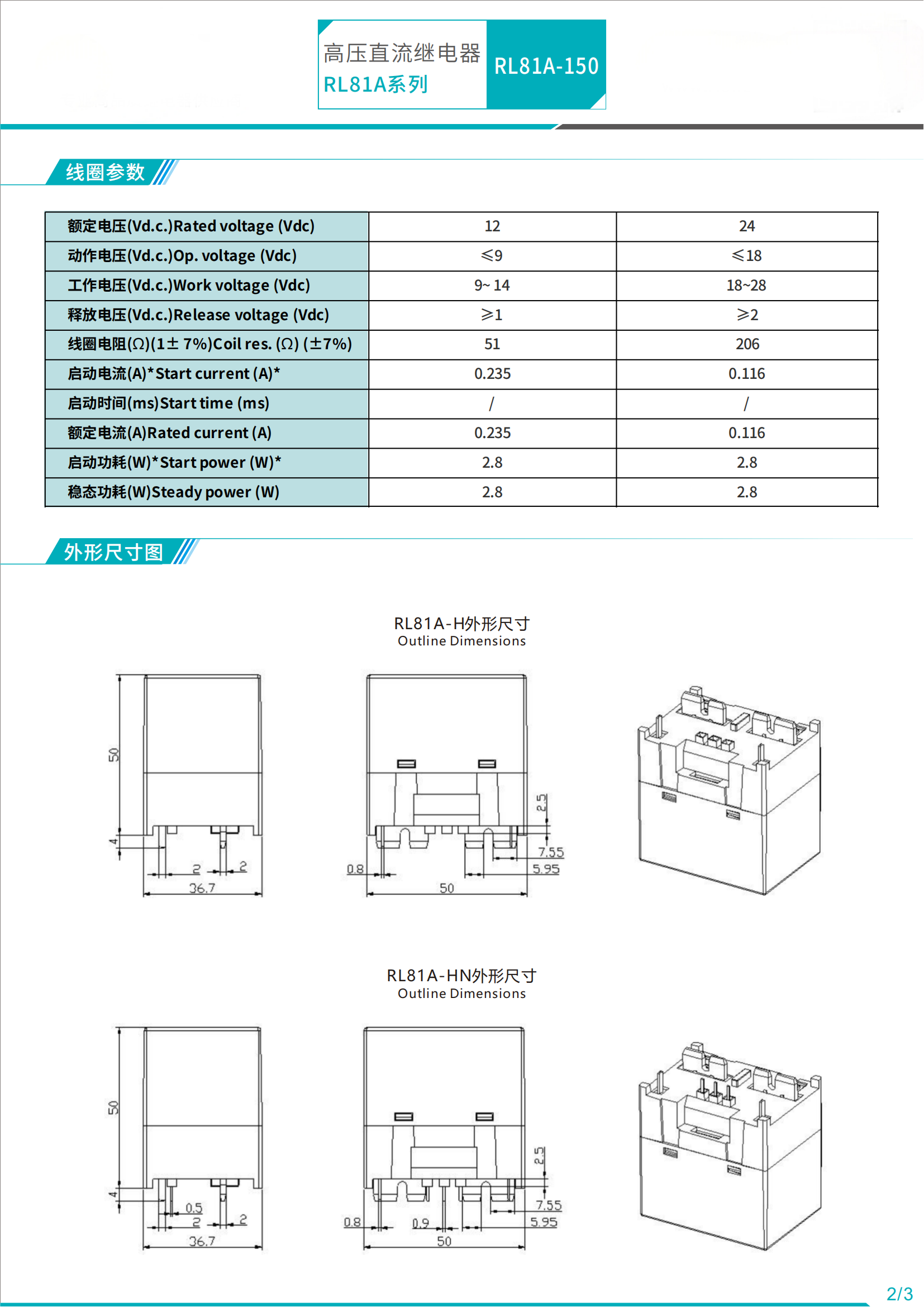

Download Annex

Product Detail

Environmental protection category: RT II

Unique magnetic arc extinguishing design, with 750V cut-off function

Unique contact structure, with higher surge resistance and current tolerance

High and low voltage withstand voltage above 4000V

Load non-polarity

Optional auxiliary contact type

Environmentally friendly product (RoHS compliant)


No comment

Product Detail

Environmental protection category: RT II

Unique magnetic arc extinguishing design, with 750V cut-off function

Unique contact structure, with higher surge resistance and current tolerance

High and low voltage withstand voltage above 4000V

Load non-polarity

Optional auxiliary contact type

Environmentally friendly product (RoHS compliant)


New Energy Relay RL81A-150 (ROC) 150A 750VDC
Environmental protection category: RT II
Unique magnetic arc extinguishing design, with 750V cut-off function
Unique contact structure, with higher surge resistance and current tolerance
High and low voltage withstand voltage above 4000V
Load non-polarity
Optional auxiliary contact type
Environmentally friendly product (RoHS compliant)
